If you've spotted a crack in your basement wall, a damp corner that won't dry out, or a door that suddenly sticks — your foundation may be telling you something. In Edmonton, it probably is. The city's expansive clay soil and brutal freeze-thaw cycles create some of the most challenging foundation conditions in Canada. This guide explains what's happening beneath your home, what the warning signs mean, and exactly what to do about it.
1. Why Edmonton Homes Are Especially Vulnerable
Edmonton sits on a thick layer of Lacustrine clay — fine-grained sediment deposited by glacial lakes at the end of the last ice age. This "Edmonton clay" behaves dramatically differently from sandy or loamy soils found in other cities. It absorbs water and swells significantly when wet, then shrinks and cracks when it dries out. Every seasonal cycle puts new stress on your foundation.
Compounding the soil issue is Alberta's temperature range. Edmonton regularly experiences winters below −30°C and summers above +30°C — a swing of more than 60 degrees. Water trapped in the soil or in hairline cracks freezes, expands, and forces cracks wider. Come spring, snowmelt saturates the clay, increasing hydrostatic pressure (the force that groundwater exerts against your basement walls).
These aren't problems you can design away — they're geological realities. What matters is catching damage early and using repair methods designed specifically for Edmonton's soil and climate.
2. Warning Signs You Should Never Ignore
Most foundation problems give you plenty of warning before they become emergencies. The key is knowing what to look for — and acting before small issues become expensive ones.
Signs of foundation trouble in Edmonton homes include: horizontal cracks in basement walls, diagonal cracks from window corners, bowing or bulging walls, sticking doors or windows, water seepage after rainfall or spring thaw, white chalky residue (efflorescence) on walls, and uneven or cracked floors. If you see any of these, request a free assessment from a licensed Edmonton foundation contractor.
Cracks in Walls or Floors
Any crack that is wider than 6mm, growing over time, or associated with water should be evaluated immediately. Horizontal cracks are the most urgent — they signal that lateral soil pressure may be overcoming your wall's structural resistance.
Water Seepage and Dampness
Water in your basement after heavy rain or spring thaw is not a drainage issue you can simply mop up — it is a symptom of hydrostatic pressure finding weak points in your foundation. Left unaddressed, it accelerates crack growth, causes mould, and damages structural components.
Doors and Windows That Stick
When your home's frame shifts, door and window frames shift with it. Doors that suddenly won't close properly, or windows that are hard to open, can indicate foundation movement — especially if this happens seasonally.
Efflorescence (White Chalky Residue)
The white, powdery coating you sometimes see on concrete basement walls is called efflorescence. It forms when water moves through concrete, carries dissolved minerals to the surface, and evaporates. It's a reliable signal that water is migrating through your foundation — even if you don't see active wet spots.
Uneven Floors or Gaps at Walls
Floors that slope noticeably, or gaps appearing between walls and floors, can indicate foundation settlement — where the soil beneath the slab is compressing or eroding unevenly.
3. How to Read Your Foundation Cracks
Not all foundation cracks are created equal. Before calling a contractor, document what you're seeing — take photos, measure the width, and note whether the crack is growing. Here's how professionals classify crack types and what each one likely means:
| Crack Type | Typical Appearance | Likely Cause | Severity |
|---|---|---|---|
| Horizontal | Runs parallel to floor, often mid-wall | Lateral soil or hydrostatic pressure | High — structural |
| Diagonal / Stair-step | 45° angle, often from corners | Differential settlement, frost heave | Moderate – High |
| Vertical (narrow) | Thin hairline, <3mm wide | Concrete curing shrinkage | Low — seal to prevent water |
| Vertical (wide/growing) | >6mm or actively widening | Settlement, frost, soil movement | Moderate — evaluate promptly |
| Slab / Floor crack | On the basement floor surface | Soil compression, frost heave below slab | Moderate — check for heaving |
| Efflorescence only | White powder, no visible crack | Water migration through porous concrete | Low — waterproof to prevent escalation |
When in doubt, treat the crack as serious. A licensed foundation inspector can assess the crack in person — and reputable Edmonton contractors like Smart Foundation Solutions offer this assessment at no charge.
4. Foundation Repair Methods Explained
The right repair method depends on the type of damage, its severity, and whether water intrusion is involved. Here's a breakdown of the most common techniques used in Edmonton:
Epoxy and Polyurethane Injection
The most common repair for non-structural cracks. Liquid epoxy or expanding polyurethane foam is injected under pressure directly into the crack, bonding the concrete back together and creating a waterproof seal. Polyurethane is flexible and better at stopping active water; epoxy creates a stronger, rigid bond and is preferred for structural restoration. Both are proven and long-lasting when applied by a skilled technician.

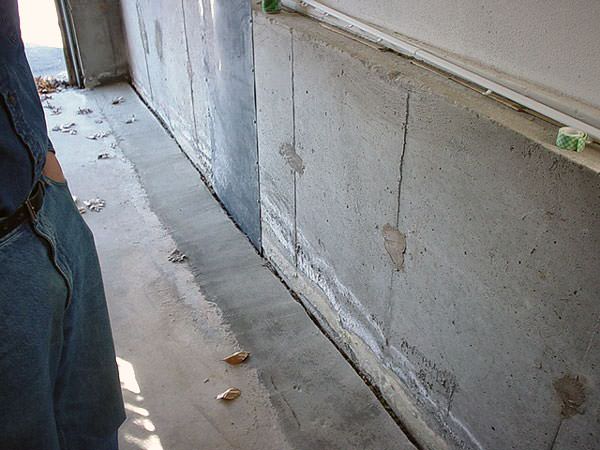

Interior Weeping Tile Systems
Rather than excavating outside (which is disruptive and expensive), interior weeping tile intercepts groundwater before it can pool against your walls. A perforated drain channel is installed along the inside perimeter of the basement floor, directing water to a sump pump that expels it from your home. This is often the most cost-effective solution for chronic moisture problems in Edmonton basements.
Sump Pump Installation
A sump pump is often the final piece of an interior drainage system. Installed in a pit at the lowest point of your basement, it automatically activates when water levels rise. Battery-backup systems ensure protection during power outages — critical during Edmonton's spring storm season when power interruptions are most likely.
Basement Waterproofing
Advanced rubber polymer coatings applied to basement walls create a continuous moisture barrier that blocks water vapour and minor seepage. Best combined with proper drainage, waterproofing protects against mould, efflorescence, and long-term concrete degradation. In Edmonton's climate, foundations should typically be re-waterproofed every 10–15 years.
Structural Repair (HSS and Pier Systems)
For bowing or severely cracked walls, Hollow Structural Steel (HSS) support systems can be installed inside the basement to brace the wall against further movement. For settlement issues, helical or push piers are driven deep into stable soil below the frost line and freeze-thaw affected zone, then used to stabilize or even lift sections of the foundation. These are the most involved repairs and require an experienced structural team.
Slab Jacking
When a concrete floor slab has settled unevenly, slabjacking (also called mudjacking or foam lifting) fills the void beneath it and lifts it back to level. This avoids the need to break up and repour the slab entirely.
5. What Foundation Repair Costs in Edmonton (2025)
Foundation repair costs vary significantly based on the type and severity of damage. Here are realistic price ranges for Edmonton, based on typical local market rates:
| Repair Type | Typical Cost Range (CAD) | Notes |
|---|---|---|
| Hairline crack injection (per linear ft) | $150 – $250 / ft | Epoxy or polyurethane; price includes labour and materials |
| Multiple crack sealing (full wall) | $600 – $2,500 | Depends on number and length of cracks |
| Interior weeping tile (per linear ft) | $80 – $130 / ft | Typical basement perimeter = 100–140 ft |
| Sump pump installation | $1,500 – $3,500 | Higher for battery backup systems |
| Basement waterproofing (interior) | $3,000 – $8,000 | Rubber polymer coatings + drainage |
| Wall bracing / HSS structural support | $5,000 – $15,000+ | Severity and wall length dependent |
| Helical or push pier stabilization | $1,500 – $3,500 per pier | Most foundations need 4–10 piers |
| Full exterior waterproofing + excavation | $15,000 – $40,000+ | Rarely necessary when interior options are viable |
Smart Foundation Solutions provides free written estimates with no obligation — so you know exactly what you're looking at before committing to any repair.
6. Basement Waterproofing vs. Foundation Repair — What's the Difference?
Foundation repair addresses structural damage — cracks, settlement, and bowing walls. Waterproofing prevents water from entering through the foundation. Most Edmonton homeowners need both: repair existing damage first, then waterproof to prevent future damage. They are complementary, not interchangeable.
Many homeowners use these terms interchangeably, but they describe different problems and solutions:
Foundation repair is structural work. It addresses existing damage — sealing cracks, stabilizing bowing walls, lifting settled sections. The goal is to restore the foundation's integrity.
Basement waterproofing is preventive work. It controls where water goes, stopping it from reaching your walls in the first place or seeping through them. A dry basement is a healthier, safer home environment.
The two often go together. If water caused a crack, you need to seal the crack (repair) and address the water source (waterproofing). Doing one without the other leaves the job incomplete. An experienced Edmonton contractor will assess both dimensions of the problem and recommend solutions in the right sequence.
7. How to Choose the Right Foundation Repair Contractor in Edmonton
The Edmonton home services market includes experienced professionals and fly-by-night operators. Foundation repair is a significant investment — choose your contractor carefully. Here's what to verify before signing anything:
-
Confirm Alberta licensing and insurance. Your contractor must be licensed in Alberta and carry liability insurance and WCB (Workers' Compensation Board) coverage. Ask for documentation — a reputable contractor provides it without hesitation.
-
Verify local experience — specifically Edmonton. Foundation repair is highly regional. A contractor who understands Edmonton clay, frost depths, and drainage patterns will diagnose and repair problems that an out-of-province or unfamiliar contractor may misread. Ask how long they've operated locally and how many Edmonton homes they've worked on.
-
Ask about their warranty — in writing. A lifetime warranty means nothing without written documentation. Ask specifically: Does the warranty transfer to new owners? What conditions void it? What does it actually cover?
-
Get a written, itemized estimate. Avoid any contractor who gives only verbal quotes or who pressures you to decide on the spot. Legitimate contractors provide written estimates with line-item pricing.
-
Read recent reviews and check references. Look for Google, Houzz, and Yelp reviews dated in the last 12 months. Ask the contractor for references from similar projects in Edmonton — and actually call them.
-
Beware of scare tactics or unnecessary upselling. Honest contractors explain the problem clearly and recommend the least invasive effective solution. If a contractor immediately recommends full exterior excavation when crack injection may be sufficient, get a second opinion.
Why Edmonton Homeowners Choose Smart Foundation Solutions
- 30+ years of combined construction and foundation experience — our team has seen every variation of Edmonton's soil and climate challenges.
- Lifetime warranty on qualifying repairs — fully documented and transferable to future owners, giving you real estate protection as well as peace of mind.
- Same-day and 24/7 emergency response — foundation failures don't wait for business hours. Neither do we.
- Licensed, bonded, and insured in Alberta — you're protected from assessment through to warranty.
- Upfront, transparent pricing — no hidden fees, no high-pressure tactics, no surprises.
- Free written estimates — know your options and costs before committing to anything.
- Serving all of greater Edmonton — including St. Albert, Sherwood Park, Spruce Grove, Beaumont, Stony Plain, and surrounding communities.
"Gil and his team completed the foundation wall repair in about a week. Over the winter, spring, and summer — no water intrusion whatsoever. Smart Foundation Solutions offered an innovative solution that was far less intrusive and costly than other options we were quoted." — Verified Edmonton Homeowner, via Google Reviews
"I had a major water leak from the floor in my basement. They came immediately, stopped the leak, and returned a few days later to install new interior weeping tiles. Very quick, very professional, left my basement completely clean. Absolute pleasure to deal with." — Verified Edmonton Homeowner, via Smart Foundation Solutions
8. Frequently Asked Questions — Foundation Repair in Edmonton
Foundation crack injection in Edmonton typically starts around $150 per linear foot. Interior weeping tile systems for a standard basement range from $8,000–$18,000 depending on perimeter length. Structural repairs such as wall bracing or pier systems can range from $5,000 to $20,000+. Smart Foundation Solutions provides free written estimates so you know exactly what to expect before work begins.
Edmonton's expansive Lacustrine clay soil swells when wet and contracts when dry. Combined with extreme freeze-thaw cycles (−30°C to +30°C seasonal swings), the ground exerts constant, changing pressure on your foundation. Snowmelt in spring saturates the clay and increases hydrostatic pressure against basement walls — forcing water through any available crack or joint.
Yes — horizontal cracks are the most serious type of foundation crack. They indicate that lateral soil or hydrostatic pressure is pushing against the wall, potentially compromising structural integrity. If you notice a horizontal crack, even a small one, call a licensed foundation contractor for an assessment right away. Do not wait to see if it grows.
Most crack repairs are completed in a single day. Interior weeping tile installation typically takes 2–4 days for a standard basement. More complex structural repairs, such as pier installation or wall bracing, can take 3–7 days. Smart Foundation Solutions is transparent about timelines upfront and works efficiently to minimize disruption to your household.
Reputable Edmonton contractors back their work with warranties. Smart Foundation Solutions provides a lifetime warranty on qualifying repairs, fully documented in writing and transferable to future homeowners. When selling your home, a warranty-backed foundation repair is a real estate asset — buyers and home inspectors view it very favourably.
DIY crack fillers (hydraulic cement, caulk, masonry paint) are temporary cosmetic fixes that do not address the underlying cause of the crack or create a durable waterproof seal. Professional injection fills the full depth of the crack under pressure, bonding the concrete and preventing future water infiltration. Given Edmonton's climate and the structural risks involved, professional repair is strongly recommended over DIY for anything more than a surface hairline crack.
Smart Foundation Solutions serves all of greater Edmonton and surrounding communities including St. Albert, Sherwood Park, Spruce Grove, Stony Plain, Beaumont, Leduc, Nisku, Fort Saskatchewan, Acheson, and Enoch. Call (780) 993-1464 to confirm service availability in your area.
